Acrylic Emulsion Paint Mixing Tank Reactor 2000L
Other recommendations
Key attributes
Other attributes
mixer type
Paddle
barrel volume (l)
8000
material processed
Chemicals
weight (kg)
2800 KG
product type
Lotion
voltage
380V/customized
power (kw)
22 kW
warranty
1 Year
range of spindle speed(r.p.m)
0 - 64 r.p.m
material
SUS304, SUS304L, SUS316, SUS316L
application
Liquid with Suspended Solids
place of origin
Guangdong, China
brand name
TGM
key selling points
High Productivity
machinery test report
Provided
video outgoing-inspection
Provided
core components
motor, Gear, Bearing, Other
Brand
TGM
Application
Paint, Coating, Pigment, Dye
Name
Paint production line
capaity
8000L
Machine Type
Semi-automatic
Material
SS304
Advantage
explosion proof
Voltage
Optional
After-sales Service
Support
Process
Mixing
Packaging and delivery
Selling Units:
Single item
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview
Platform Disperer Product Information
TGM Multifunctional Mixing And Dispersion Caldron.has functions of low speed stirring agitating and high speed dispersing,it has sure of suitability to medium and high viscosity material and rheopexy.The machine can be used to stri,dissolve,disperse and color matching.It is ideal for patchi latex paints production.
Features

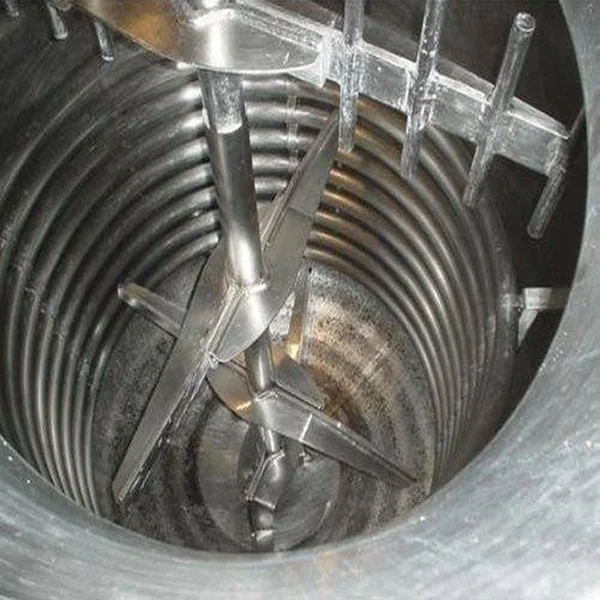

● Various agitator types: Anchor agitator with scraper, Anchor agitator with three blade, High-speed dispersion disc, High-shear emulsifier, screw agitator, multi-layers impeller etc.. The agitators can be designed according to the property of the materials and the requirements of the production technology;
●The mixing kettle is with circle top and bottom and to be suitable for vacuum and pressurized working condition ;

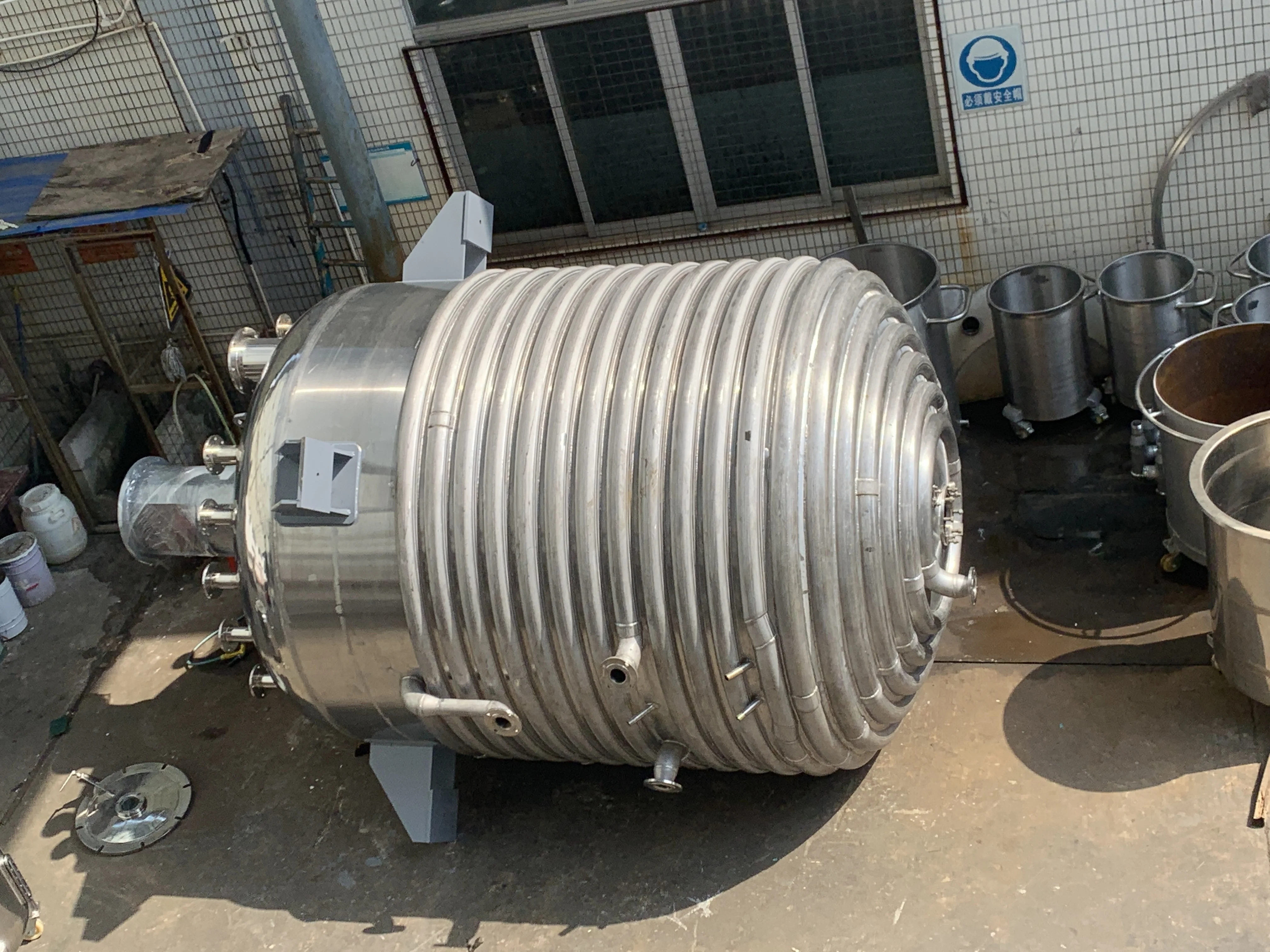

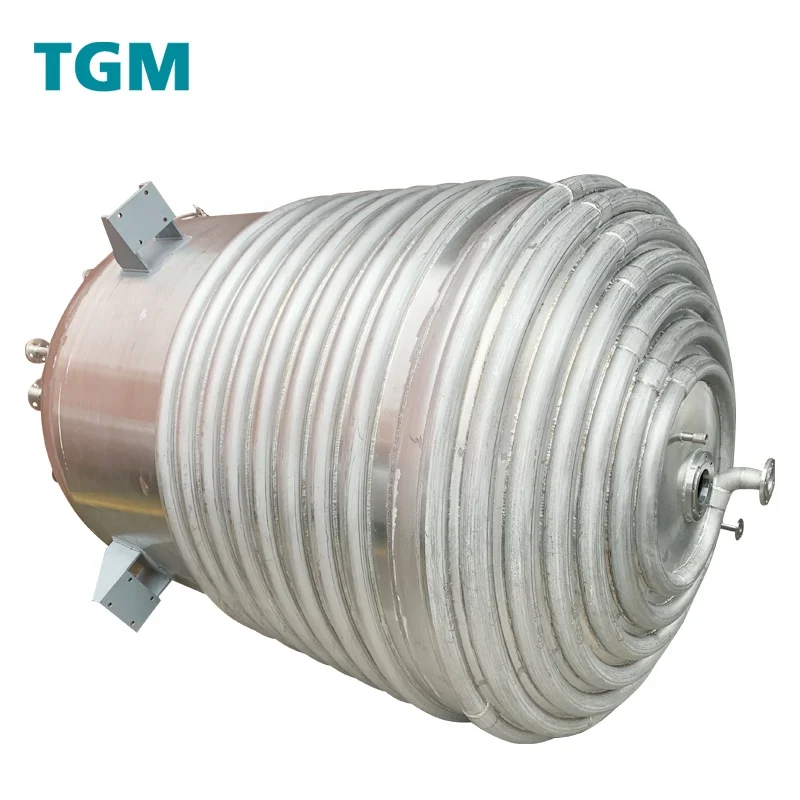

●The mixingkettle can be with jacket or limpet coil for cooling or heating ;
● Easy maintenance and all the part contacting with materials is mirror polished for easy clean;
Type | FS2M³ | FS3M³ | FS5M³ | FS6M³ | FS8M³ | FS10M³ | FS12M³ | |||||||
Agitate power(kw) | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | 18.5 | |||||||
Agitate Speed(r/min) | 50 | 41 | ||||||||||||
Capacity(m³) | 2 | 3 | 5 | 6 | 8 | 10 | 12 | |||||||
Dispersing Speed(r/min) | 960/1450 | 870/1470 | 750/1480 | |||||||||||
Overall dimension(mm) | D | 1400 | 1600 | 1800 | 1800 | 2000 | 2200 | 2400 | ||||||
H | 1650 | 1765 | 2048 | 2400 | 2800 | 2950 | 3100 | |||||||
H1 | 1930 | 2000 | 2200 | 2200 | 2500 | 2570 | 2620 | |||||||
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate,design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.
Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery , electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent, lotions, shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province,China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
5.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
6.What's the payment method?
-We accept T/T and L/C payment.
