Easy Operation Lab Laboratory Powerful Disperser Mixer Scraper Type
Other recommendations
Key attributes
Other attributes
mixer type
Agitator
barrel volume (l)
5
material processed
Chemicals
weight (kg)
850 KG
product type
Toothpaste
voltage
Customized
power (kw)
4 kW
warranty
1 Year
range of spindle speed(r.p.m)
0 - 2800 r.p.m
material
SUS304, SUS304L, SUS316, SUS316L
application
Liquid with powder
additional capabilities
agitator with mixing
place of origin
Guangdong, China
brand name
TGM
key selling points
Multifunctional
machinery test report
Provided
video outgoing-inspection
Provided
core components
motor, Gear, Pressure vessel, Gearbox, Pump, PLC, Bearing, Engine, Other
Brand
TGM
Product name
lab Planetary mixer
Application
Sealants/RTV/silicone/toothpaste
Machine Type
Mixng Machine
Heating method
Electric Heating
Capacity
5-10L
Discharge
Pressure
Jacket
2 Layers
Speed control
Inverter Frequency Control
Rotate speed
2800 R/min
Packaging and delivery
Packaging Details
wood case
Port
guangzhou/shenzhen
Selling Units:
Single item
Supply Ability
500 Set/Sets per Month
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview

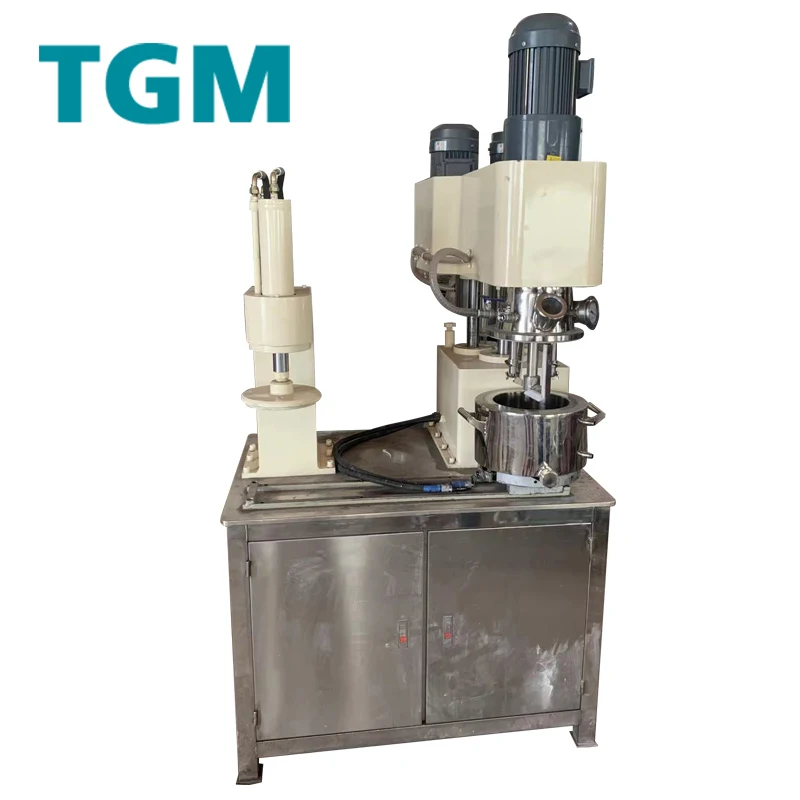

Lab Multi-functional Dispersing Machine with Wall Scraper
Dual Shaft Multi-Functional Dispersing Mixer is a new developed powerful dispersing and mixing machine base on hydraulic lifting
single shaft mixer, it can be divided into dispensable dual shaft and coaxial dual shaft according to the dual shaft coaxial or
not; this machine is specially suitable for mid-and-high viscosity material and thixotropic material, many agitator patterns for
option, usually has anchor type, butterfly type, frame type etc., can disperse and mix at the same time, with strong adaptability,
can be customized according to different property and production process of the material.
single shaft mixer, it can be divided into dispensable dual shaft and coaxial dual shaft according to the dual shaft coaxial or
not; this machine is specially suitable for mid-and-high viscosity material and thixotropic material, many agitator patterns for
option, usually has anchor type, butterfly type, frame type etc., can disperse and mix at the same time, with strong adaptability,
can be customized according to different property and production process of the material.
Features
1.High mixing efficiency, good quality
Dual Shaft Multi-Functional Strong Power Dispersing Mixer consists of the agitator with scraper and high speed disperser, two sets of agitators working at the same time, so that the materials are mixed rapidly under the action of strong shearing and kneading force. Various agitators ( usually anchor type, butterfly type etc) are in option based on materials with different viscosity and different specific gravity and different production technology.
2.Safe and convenient operation
Adopt hydraulic cylinder as lifting actuators. Control the mixer up, stop and down through controlling the valve, simple operation with high stability; with bolt for fixing the agitator and the main shaft, easy to disassemble and to clean. Different clamping mode (belt clamping, manual rotation clamping, pneumatic clamping) are optional for fixing the mixing tank rapidly to prevent any possible accident due to tank displacement. .

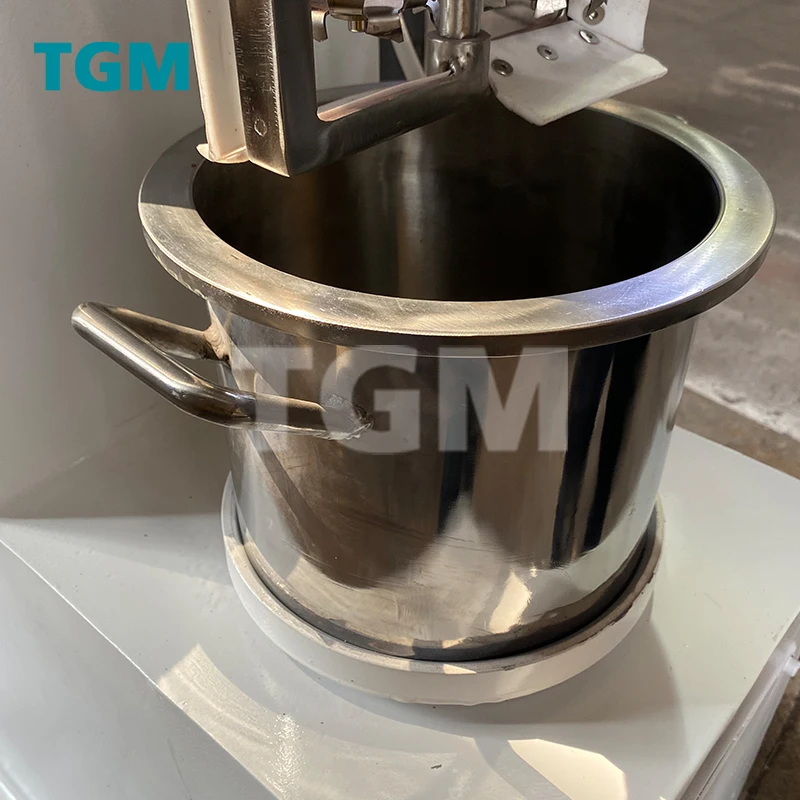

3.No residue on the wall, clean discharging
There is scraper on the agitator, it clings to the container and scrape the materials on the wall off continuously. The container inner wall is precisely lathed and then mirror polished to ensure the scraper can scrape all materials sticking to the wall off without residue, improving the mixing effect..
4.Customized options
Different options are available such as explosion-proof type, closed type, heating type, with PLC intelligent control type, etc..Material can be customized to be SS316L or special Spraying materials.
Brand | TGM |
Motor Power | 1.1-5.5KW |
Motor type | Non-Explosion proof |
Capacity | 5-50L |
Speed | 0-3000rpm |
Inverter | Yes |
Voltage | customized |
Cabinet | Non-Explosion proof |
Application | sealants |
Hydraulic | Yes |
Certificate | ISO9001; CE |
Condition | Band New |
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate, design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery, electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent,lotions,shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province, China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Which countries your machine sold to?
-American Market: America, Canada, Mexico, Brazil;
-European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia;
-African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar;
-Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, India, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
5.How could I know how to operate the machines?
-12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
6.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
7.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
8.What's the payment method?
-We accept T/T and L/C payment.
