High productivity Horizontal bead mill sand mill for ink paint coating
Other recommendations
Key attributes
Industry-specific attributes
output (kg/h)
300 - 500 kg/h
feeding size (mm)
0.05 - 0.1 mm
output size (mesh)
10 - 120 mesh
Other attributes
application
Chemicals Processing
type
Grinder
voltage
380V/customized
weight (kg)
1550 KG
warranty
1 Year
power (kw)
30
range of spindle speed(r.p.m)
1000 - 1300 r.p.m
material
SUS304, SUS304L, Other
product type
Paint
place of origin
China
brand name
TGM
key selling points
Flexible Manufacturing
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Pump, Gear, motor, Gearbox, Other, Pressure vessel
Product name
Closed Grinding Mill
Machine Type
Grinder
Suitable for
Paint, Coating, etc..
Function
Mixing
Feature
High Efficiency Easy Operation
Capacity
200-1000L
Speed
60-120rpm
Color
Green+White
Motor power
15-90kw
After-sales Service Provided
Online Support
Packaging and delivery
Selling Units:
Single item
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview

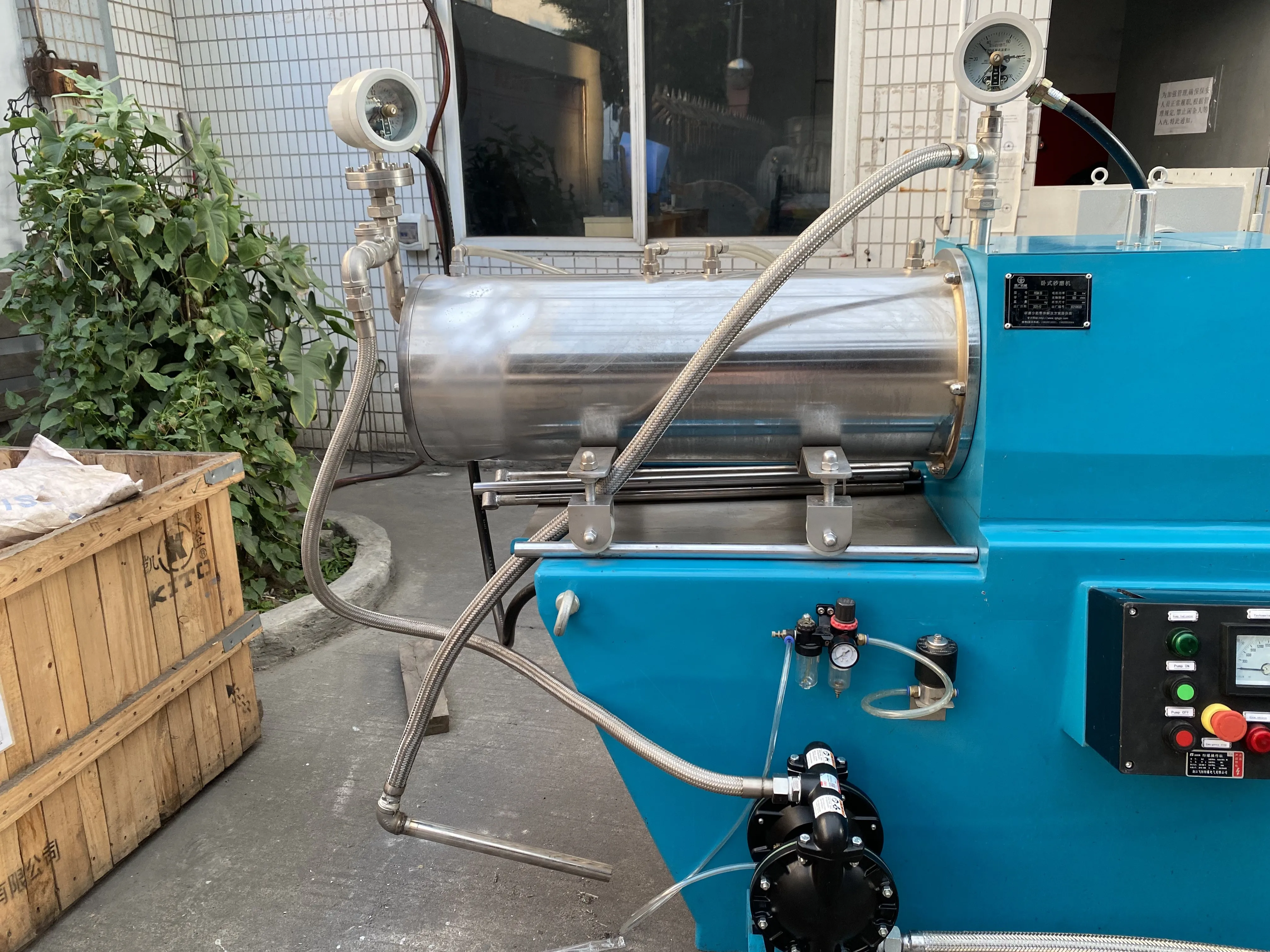

Closed Bead Mill Sand Mill Horizontal Grinding Mill Large Production Grinding Miller Chemical Wet Grinder mill
Suitable for large industrial continuous production
Suitable for high viscosity, high solid content & high refining requirements, continuous or circulating process
Unique large area tubular reseau centrifugal separator, precise separation & smooth discharging, solve the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding medium, at the smallest 0.05mm discharging sieve can be applied.
Selection of special material( zirconia/silicon carbide/hard alloy steel etc.) enhance wearability of all processing contact
parts. It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
Unique double cartridge mechanical seal, to ensure long operation of shaft seal, maximum 8-10kg pressure resistance.
Suitable for high viscosity, high solid content & high refining requirements, continuous or circulating process
Unique large area tubular reseau centrifugal separator, precise separation & smooth discharging, solve the problems of slow discharging speed and blocking of grinding medium. It can use ultrafine grinding medium, at the smallest 0.05mm discharging sieve can be applied.
Selection of special material( zirconia/silicon carbide/hard alloy steel etc.) enhance wearability of all processing contact
parts. It adopts internal thread type cooling way, effectively improves heat dissipation the grinding chamber.
Unique double cartridge mechanical seal, to ensure long operation of shaft seal, maximum 8-10kg pressure resistance.
Difference:
There are two types of bead mills: horizontal and vertical. There is no big difference in the
processing performance between the two types. They have the following advantages and disadvantages:
* Horizontal type * Large installation space is needed. * The startup power is lower because the bead dead height in the mill is low.
processing performance between the two types. They have the following advantages and disadvantages:
* Horizontal type * Large installation space is needed. * The startup power is lower because the bead dead height in the mill is low.
* Recovery of residual slurry and bead discharging require more work and time.
* Replacement of parts is relatively easy.
* Vertical type * Small installation space * The start-up power is higher because the bead dead height in the mill is high. * Recovery of residual slurry and bead discharging are easier. * Replacement of parts requires a little bit more work.
* Vertical type * Small installation space * The start-up power is higher because the bead dead height in the mill is high. * Recovery of residual slurry and bead discharging are easier. * Replacement of parts requires a little bit more work.
Type | HSM5A | HSM20A | HSM30A | HSM50A | HSM60A |
Motor Power(kw) | 5.5 | 18.5 | 22 | 30 | 30 |
Cooling/Heating | Support | Support | Support | Support | Support |
Vessel Capacity(L) | 5 | 20 | 30 | 50 | 60 |
Weight(kg) | 350 | 1050 | 1250 | 1800 | 2500 |
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate, design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery, electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent,lotions,shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province, China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Which countries your machine sold to?
-American Market: America, Canada, Mexico, Brazil;
-European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia;
-African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar;
-Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, India, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
5.How could I know how to operate the machines?
-12 months free for whole machine, After a year, spare parts charges, but life-long free for consultant.
6.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
7.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
8.What's the payment method?
-We accept T/T and L/C payment.
