High quality hydraulic lifting disperser frequency speed dispersing machine for automotive paint car paint
Other recommendations
Key attributes
Other attributes
mixer type
Agitator
material processed
Chemicals
weight (kg)
1050
product type
Paint
voltage
380V/customized
power (kw)
22 kW
warranty
1 Year
Capacity
800-1000L
range of spindle speed(r.p.m)
0 - 1500 r.p.m
material
SUS304, SUS304L, SUS316, SUS316L
application
Liquid
additional capabilities
COATING
place of origin
Guangdong, China
brand name
TGM
key selling points
High Productivity
machinery test report
Provided
video outgoing-inspection
Provided
core components
motor, Gear, Other, Bearing
Brand
TGM
Application
Liquid Chemical
Name
chemical production line
capaity
500-1000L
Machine Type
Semi-automatic
Material
SS304
Advantage
explosion proof
Voltage
Optional
After-sales Service
Support
Process
Mixing
Packaging and delivery
Selling Units:
Single item
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview
A dispersing machine is a vital piece of equipment in the paint, coating, and ink industries, used to mix and disperse solid particles uniformly within a liquid medium. The primary objective of the machine is to achieve a homogeneous mixture, which is essential for ensuring the quality, performance, and aesthetics of the final product. Here’s an overview of the key components, types, and functions of dispersing machines used in these industries

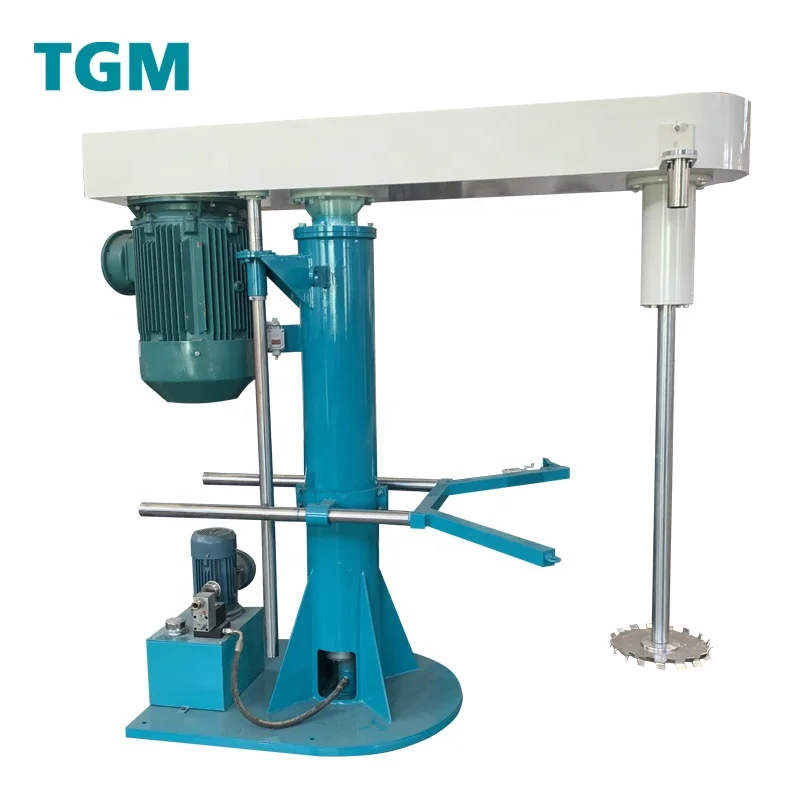

Dispersing Blade
The heart of the machine, usually designed in various shapes (such as sawtooth or flat) to optimize the shear force applied to the mixture. Some clients want to use different type of dispersing blade, we could customized.
SIZE OF DISPERSING DISC
2. Model No. FL 22, FL30 and FL37, dispersing disc diameter is 350mm.
3. We could use different type of blade according to your request.
MOTOR OF MACHINE
Powers the dispersing blade, allowing for variable speeds to accommodate different viscosity materials.
Explosion proof is popularize option. Non-explosion proof is optional

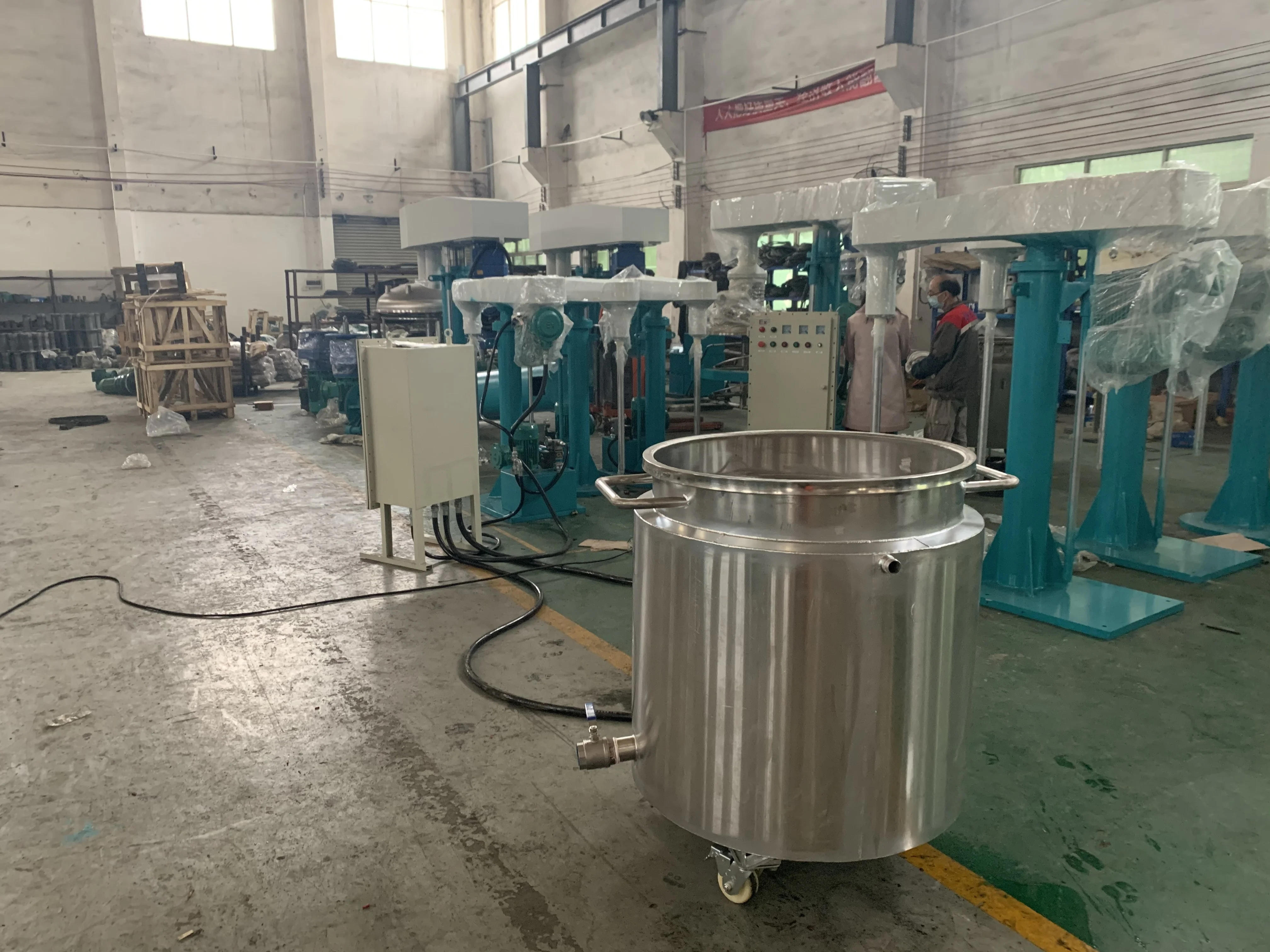

HOW TO CHOOSE TANK FOR THE MACHINE
For processing 500kg/l, choose model FL7.5/ FL11/ FL15
For processing 1000kg/l, choose model FL18/ FL22/ FL30 /FL37
For processing 1500-2000kg/l, choose model FL37/ FL45/ FL55
Different kind of paints/ dyes/ inks/ coating, please contact detail with us.
CONTROL PANEL
Enables operators to monitor and adjust various parameters such as speed, time, and temperature during the dispersing process.
EM Stop, Speed+, Speed-, ON/OFF, Go up, Go down
Functions and Applications:
* Dispersion of Pigments: Ensures that pigments are evenly distributed throughout the paint or coating, which directly impacts color strength and uniformity.
* Emulsification: Helps in forming stable emulsions by breaking down the particles into smaller sizes and distributing them throughout the liquid phase.
* Deagglomeration: Breaks down agglomerates or clusters of particles to achieve a finer and more uniform product.
* Incorporation of Additives: Involves mixing in various additives (like thickeners, surfactants, or defoamers) to the paint or coating formulation.
* Quality Control: Consistent dispersion helps in achieving the desired characteristics of the final product, such as viscosity, gloss, and opacity.
* Emulsification: Helps in forming stable emulsions by breaking down the particles into smaller sizes and distributing them throughout the liquid phase.
* Deagglomeration: Breaks down agglomerates or clusters of particles to achieve a finer and more uniform product.
* Incorporation of Additives: Involves mixing in various additives (like thickeners, surfactants, or defoamers) to the paint or coating formulation.
* Quality Control: Consistent dispersion helps in achieving the desired characteristics of the final product, such as viscosity, gloss, and opacity.
Type | FL1.5/FL2.2 | FL4 | FL5.5/FL7.5/FL11 | FL22/FL30 | FL37/FL45 | ||||
Motor power(kw) | 1.5/2.2 | 4 | 5.5/7.5/11 | 22/30 | 37/45 | ||||
Speed(r/min) | 0-1450 | ||||||||
Diameter(mm) | 150 | 200 | 250 | 350 | 400-500 | ||||
Lift(mm) | 800 | 800 | 900 | 1200 | 1200-1500 | ||||
Pump power(kw) | 0.55 | 0.55 | 0.75 | 1.5 | 1.5 | ||||
Capacity | 50-100 | 100-200 | 200-500 | 600-1000 | 1000-1500 | ||||
Weight(kg) | 480 | 630 | 750 | 1250 | 1350 | ||||
Overall diameter(mm) | 1100*350*1110 | 1350*550*1500 | 1800*650*1820 | 2100*1000*2100 | |||||
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate,design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.
Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery , electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent, lotions, shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province,China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
5.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
6.What's the payment method?
-We accept T/T and L/C payment.
