Lab triple roll mill making polyester pigment paste high viscosity material three roll mill
Other recommendations
Key attributes
Industry-specific attributes
output (kg/h)
10 - 100 kg/h
feeding size (mm)
0.05 - 0.1 mm
output size (mesh)
10 - 120 mesh
Other attributes
application
Chemicals Processing, Slurry Grinding
type
Grinder
voltage
220V/380V/Customized
weight (kg)
60 KG
warranty
1 years
power (kw)
15
range of spindle speed(r.p.m)
14 - 130 r.p.m
material
Alloy steel, Ceramic
product type
Rubber
place of origin
Guangdong, China
brand name
TGM
key selling points
Automatic
machinery test report
Provided
video outgoing-inspection
Provided
core components
Gear, motor
Brand
TGM
Product name
Lab Three Roll Mill
Voltage
Customized
Function
Grinding
Suitable for
liquids and pastes
Capacity
5-10kg/h
Inverter
Yes
Material
Customized
Adjust mode
Manual
Grinding media
No need
Packaging and delivery
Packaging Details
wood case
Port
guangzhou/shenzhen
Selling Units:
Single item
Supply Ability
500 Set/Sets per Month
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview
Lab Three Roll Mill Information

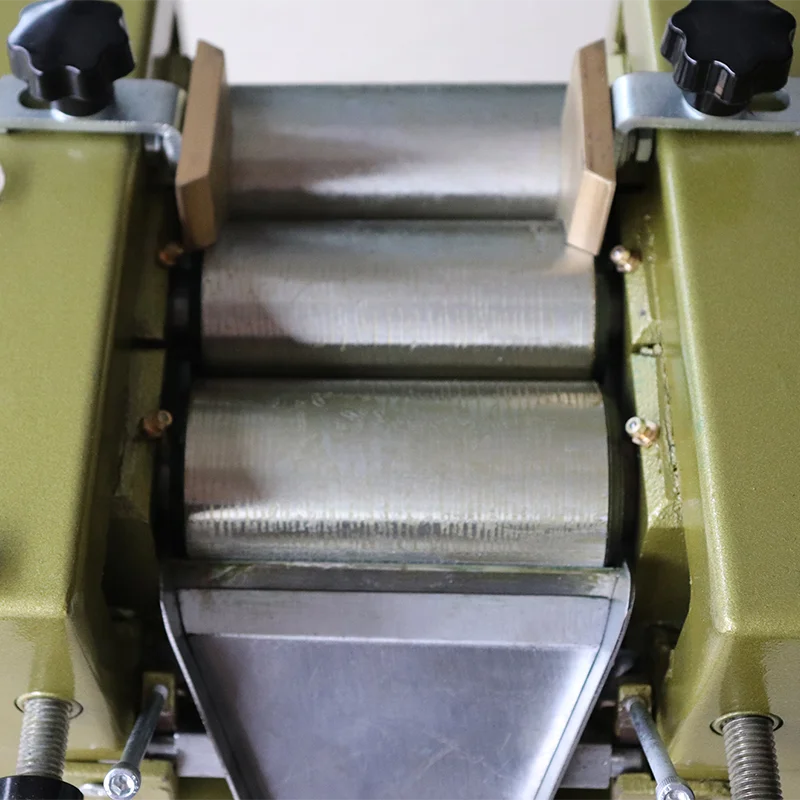

Mini Three Roll Mill, Advanced laboratory three roll mill For Efficiency The material to be milled is placed between the feed and center rolls. Each adjacent roll rotates at progressively higher speeds.
For example; the feed roll may rotate at 26 rpm, the center roll at 70 rpm and the apron roll at 145 rpm. Material is transferred from the center roll to the apron roll by adhesion. The dispersion is achieved by the shear forces generated between the adjacent rolls. The milled material is removed from the apron roll by a knife that runs against the roll.
For example; the feed roll may rotate at 26 rpm, the center roll at 70 rpm and the apron roll at 145 rpm. Material is transferred from the center roll to the apron roll by adhesion. The dispersion is achieved by the shear forces generated between the adjacent rolls. The milled material is removed from the apron roll by a knife that runs against the roll.
Type | S65/ST65 | ||
Roller Diameter(mm) | 65 | ||
Length Of Roller Working Surface(mm) | 130 | ||
Height Of Discharge Port From Ground(mm) | 220 | ||
Roller Speed (r/min) | Low roll | 26 | |
Medium roll | 70 | ||
High roll | 145 | ||
Motor Power | 0.75 | ||
Overall Dimension L*W*H(mm) | 440X400X450 | ||
Machine Weight(kg) | 60 | ||
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate,design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.
Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery , electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent, lotions, shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province,China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Which countries your machine sold to?
-American Market: America, Canada, Mexico, Brazil; -European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia; -African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar; -Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, India, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
5.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
6.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
7.What's the payment method?
-We accept T/T and L/C payment.
