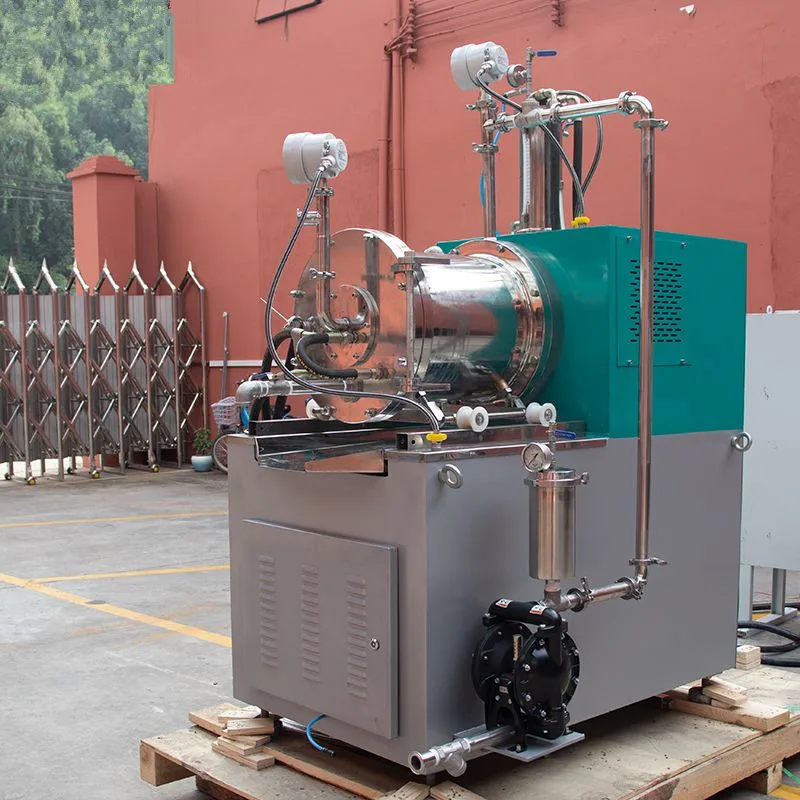

TGM Machine Turbine Nano Grinding Mill horizontal Sand Mill For Digital Ink nano Sand Mill
Other recommendations
Key attributes
Industry-specific attributes
output (kg/h)
300 - 500 kg/h
feeding size (mm)
0.05 - 0.1 mm
output size (mesh)
10 - 120 mesh
Other attributes
application
Chemicals Processing, Food Processing
type
Grinder
voltage
380V/customized
weight (kg)
1350 KG
warranty
1 Year
power (kw)
22
range of spindle speed(r.p.m)
1000 - 1300 r.p.m
material
SUS304, SUS304L, Other
product type
Paint
place of origin
China
brand name
TGM
dimension(l*w*h)
customized
key selling points
Flexible Manufacturing
machinery test report
Provided
video outgoing-inspection
Provided
core components
Bearing, Pump, Gear, motor, Gearbox, Other, Pressure vessel
Product name
Turbine Nano Grinding Mill
Machine Type
Grinder
Suitable for
Paint, Coating, etc..
Function
Mill
Feature
High Efficiency Easy Operation
Capacity
200-1000L
Speed
60-120rpm
Color
Green+White
Motor power
15-90kw
After-sales Service Provided
Online Support
Packaging and delivery
Selling Units:
Single item
Lead time
| Quantity (pieces) | 1 - 100 | 101 - 500 | > 500 |
| Lead time (days) | 20 | 30 | To be negotiated |
Customization
Customized packaging
Min. order: 1
Customized logo
Min. order: 1
Graphic customization
Min. order: 1
Certifications
CE
Overview
Process Characteristics
● Ideal for single/multi-channel or recirculating production processes, where continuous high efficiency achieves the narrowest particle size distribution.

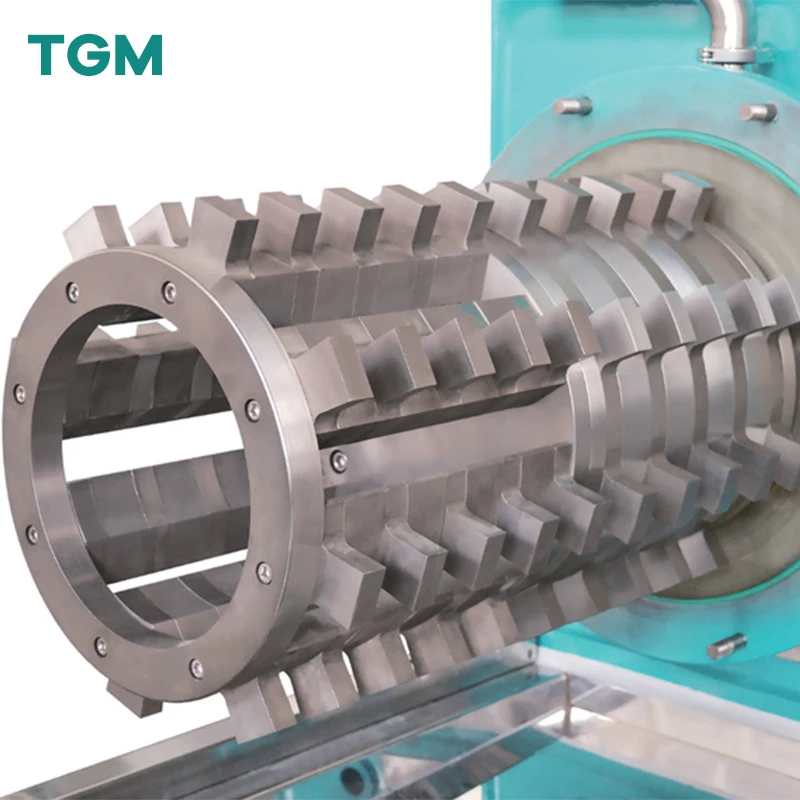

● Turbine gas pedal generates a powerful fluid motion of the grinding beads, thus ensuring a continuous and constant energy input.
● High energy utilization and low energy consumption of the whole machine.
● The possibility to process materials from low to high viscosity
● Ideal cooling characteristics allowing the processing of temperature-sensitive materials.
● The unique fluid motion of the grinding beads guarantees a smooth grinding process.
Performance Advantage
●Much higher throughputs;
●Better ability to process highly viscous products;
●Longer lifetime of the screen;
●Improved ability to handle foaming products;
●Ability to grind in the nanometre range;
●Simple handling of the machine during the production and the maintenance;
●Possibility for fast product changes at low costs;
●Optimal suitability for the pass mode and the circulation mode.
Application Domain
●Paints and varnishes ●Printing inks
●Pigments and dyes ●Coatings
●Automobile coatings ●Jet
●Semiconductor ●Ceramic
●Pharmaceutical ●Food industry
●Agrochemicals ●Cosmetics
●Paper industry ●Life sciences
●Microbiology ●Filling
Type | TN-2 | TN-10 | TN-18 | TN-30 | TN-60 |
Motor Power(kw) | 5.5~7.5 | 15~22 | 30~37 | 37~45 | 55~90 |
Cooling water(L/h) | 1000~1500 | 1500~2200 | 1800~2500 | 2500~3000 | 3000~4000 |
Vessel Capacity(L) | 2 | 10 | 18 | 30 | 60 |
Weight(kg) | 600 | 750 | 1100 | 1300 | 1600 |
TGM Machine is professional in chemical machinery and complete production lines,with 19 years of industry experience.We integrate,design,development, production, sales and trading, maintenance together.We are a leader of this industry. Our company has professional R&D design team, strong technical support, skilled production team, reliable after sales service,flexible customized solutions, to meet your various standards and non standard equipment procurement needs.We committed to providing the complete and professional chemical equipmentsolutions.Our Main business scope: Disperser, Bead Mill, Mixer, Reactor, Filling machine, Bag filter, diaphragm pump, Zirconium bead, 3 roll mill, and other accessories.
Our machines help to make paints,coatings inks pigments, dyes, glues, adhesives,spin finish,wood glue,glue for paper conversion,viscous pastes, concrete Admixtures, PCVC solvent cement,resins ,sealants,silicone sealant, putty, lithiumbattery , electronic slurry&paste,pulps,liquid rubber,pesticide,liquid fertilizer, disinfectant,liquid detergent, lotions, shampoo, body wash liquid soap, hand sanitizer,nail polish,gel,creams,and other chemical and cosmetics products.
1.Are you a factory or a trading company? where is your factory?
-We are a real factory. Our factory is in fu'an industrial zone, leliu street, shunde ditrict, foshan city, guangdong province,China.
2. What are advantages of your factory?
-1)Our factory is a leader manufacture of Chemical machine With 19 years of Industry experience. We have a lot Technology Patents & Product Patents;
2) Our factory has Professional R&D Teams, High Technical Supports, Skilled Production Team, Reliable After Sales Service, Flexible Customized Solutions;
3) Our factory is the leader of this industry, named with high and new technology enterprise;
4) Our factory has plenty of industry experience, we could offer you the complete palnt planning.
3.Who are your factory's clients? Could you list some of them?
-AKZONOBEL, JUNTON, PPG, NIPPON, DABAO, BURGER, MAYDOS, RAINBOW, HITECH COATING, CHINA PAINT, CHANGJIANG COATING, TOA, LYNWON PIGMENT, PEONY INKS, TL INKS, ZR INKS, SAKATA INKS, KINGSWOO INKS, DIC INKS, ANLI, ACHILLES, REPOW GROUP, SHINETSU ADHESIVES, JUSHI, XINGLONG PESTICIDES, BYD, CATL...
4.Which countries your machine sold to?
-American Market: America, Canada, Mexico, Brazil; -European Market: UK, Germany, Netherlands, Bulgaria, Italy, Russia; -African Market: South Africa, Algeria, Zambia, Cameroon, Ethiopia, Uganda, Madagascar; -Asian Market: Malaysia, Indonesia, Singapore, Vietnam, Thailand, Kazakhstan, Bangladesh, India, Pakistan, Lebanon, Iran, Iraq, Egypt, Qatar, Turkey, Saudi Arabia, UAE;
5.Could your factory provide formula and raw materials service?
-.Basically we are machinery suppliers, not products chemist. For some paint&coatings, silicone sealant, textile printing adhesives or pesticide we could help you find chemist and raw materials from our cooperative clients. Other products we are not sure. But if you need our help, we will try our best to dicuss with our serviced cleints and see if they would like sell to you formula or not.
6.Do you have agent in our country?
-1.No, we ship directly from China to you. our machines generally ship without dismounting. You generally only need to connect electricity, you could use directly. If need installation, we provide detailed installation instruction for full line or we send engineers to help you with paying.
7.What's the payment method?
-We accept T/T and L/C payment.
